E-Prime extensions - Tobii
E-Prime® Extensions for Tobii

Powerful experimental design

Overview

Extending research possibilities

E-Prime 3 and E-Prime Extensions for Tobii Pro 3.2 can be used in two ways with our products.

In combination with:

  • Our screen-based Tobii eye trackers for recording raw eye tracking data with E-Prime
  • Tobii Pro Lab (version 1.111 or higher) which offers a simplified 2 in 1 solution for recording raw eye tracking data with Pro Lab and the possibility to replay and visualize gaze data, apply fixation filters and calculate meaningful AOI gaze data metrics.

Simplified 2 in 1 solution

Tobii Pro Lab and E-Prime Extensions 3.2 together offer a simplified solution to combine Pro Lab and E-Prime from PST. The 2 in 1 solution enables researchers to process the raw gaze data in Pro Lab with dedicated gaze data analysis tools while using E-Prime's powerful design and stimulus presentation features for the creation of sophisticated eye tracking experiments (including gaze-contingency).

Among other things, E-Prime features programmable experiments, precise stimulus timing, and integration with various data sources, such as response boxes and EEG devices. E-Prime Extensions is intended for research use only.

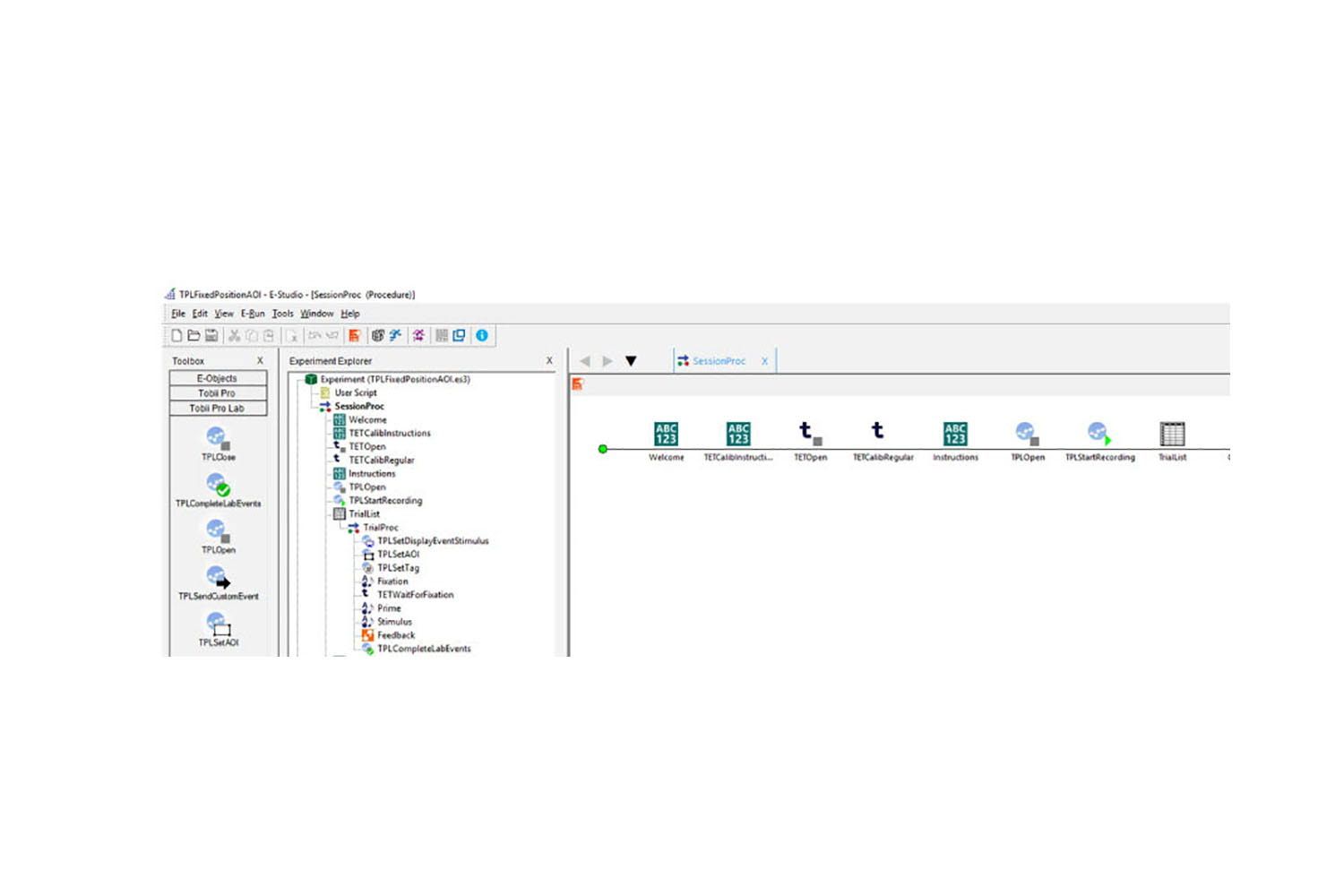

Tobii E-Prime Extensions

Seamless E-Prime® integration

  • Simplified setup: one-computer solution running both Pro Lab and E-Prime without timing constraints (two-computer solution optional)
  • New External presenter project type in Pro Lab enables recording of the E-Prime stimulus presentation and eye tracking data
  • Stimulus onset events and media files containing AOIs and associated tags are transferred from E-Prime to Pro Lab and automatically generated in Pro Lab
  • Transfer of response and custom events that can be used for Times of Interest (TOI) creation

In Tobii Pro Lab:

  • Replay stimulus presentation sessions with gaze data in Pro Lab

  • Apply fixation filters to raw data

  • Create visualizations of the recorded gaze data and calculate meaningful gaze data metrics in Pro Lab

In E-Prime Extensions 3.2:

Complete of all communication with Pro Lab from E-Prime directly:

  • Perform calibration (regular, manual, infant)

  • Start and stop recording

  • Send media files with specified AOIs and Tags

  • Send stimulus and response events

  • Send custom events for Times of Interest (TOI) creation

  • Auto-detect Tobii Pro eye tracker within E-Prime

  • Give feedback based on gaze behaviors

  • Create interactive and passive eye tracking paradigms with gaze-contingent functionalities

Features

Comprehensive software package

E-Prime and E-Prime Extensions (EET) can be purchased through our team. The E-Prime Extensions software package includes:

  • E-Prime Extensions
  • A library of sample paradigms for learning and paradigm adaptation
  • E-Prime support and Tobii Pro hardware support.

E-Prime Extensions for Tobii Pro 3.2 is a free update for E-Prime Extensions for Tobii Pro 3.x users. You can download the update after logging into E-Prime’s support site and navigating to the "Downloads" area.

Specifications

Technical specifications

For E-Prime and E-Prime Extensions system requirements¹
For one-computer setup²
  1. For E-Prime and E-Prime Extensions system requirements, please refer to Psychology Software Tools, Inc.
  2. For one-computer setup, running E-Prime 3 with E-Prime Extensions 3.2 and Pro Lab on the same computer, and Pro Lab requirements in two-computer setups, please refer to the Tobii Pro system recommendations found under System requirements on Tobii Pro Lab.
EET versionE-Prime versionTobii softwareTobii eye tracker
EET 3.2.1.105E-Prime 3.0.3.80Tobii Pro LabTobii Pro Spectrum, Tobii Pro Fusion, X3-120 (EPU), X2-60, TX300
EET 3.1.1.56E-Prime 3.0.3.80, E-Prime 3.0.3.60, E-Prime 3.0.3.31E-Prime onlyTobii Pro Spectrum, X3-120 (EPU), X2-60, TX300
EET 3.0.1.29E-Prime 3.0.3.80, E-Prime 3.0.3.60, E-Prime 3.0.3.31Tobii Pro Studio 3.4.8Tobii Pro X3-120 (EPU), X2-60, TX300, T60, T120, X60, X120, T60XL
EET 2.0.2.50E-Prime 2.0.10.356, E-Prime 2.0.10.353Tobii Pro Studio 3.1.0 to 3.4.8Tobii Pro X3-120 (EPU and specific EET Patch), X2-60, TX300, T60, T120, X60, X120, T60XL
EET 2.0.1.26E-Prime 2.0.8.90aTobii Pro Studio 2.3 to 3.0Tobii Pro T60, T120, X60, X120, T60XL, TX300 and X2-60
EET 1.0.4.11E-Prime 1.2Tobii Pro Studio 2.0Tobii Pro 1750, X50, 2150, T60, T120, X60, X120, T60XL, TX300

Tobii Pro Extensions
