Multimodal research solutions

1. The solution in Tobii Pro Lab permits the recording of eye tracking data, while the other data streams are recorded in the partner’s software solution. In the case of screen-based experiments, Tobii Pro Lab also delivers the stimulus presentation.

2. The synchronization of the data streams is done by sending TTL events to all data streams which allow a very accurate data merge after the recording.

3. Next step is to analyse the eye tracking data in the dedicated software Tobii Pro Lab, where it is possible to run an advanced eye tracking analysis, such as fixation filters, AOIs, and event logging.

4. Starting with version 1.130, Tobii Pro Lab supports PLOF 2.0 export format, designed to contain all eye tracking and event data in a machine-friendly format that can be imported into any of our partner’s solution software. PLOF export format achieves an accurate and robust merge of not only raw eye tracking data, but more importantly of any gaze, AOI or behavioral event data generated in Tobii Pro Lab.

5. Last step is to analyse the EEG or other biometrics data with help of the merged eye tracking data. This is done in the partner software using all the specialized tools required for a correct EEG and biometrics analysis.

Brain Products is the world’s leading manufacturer of hardware and software solutions for neurophysiological research.

The combined solution between Tobii Pro Lab and Brain Products allows the user to co-register EEG and eye-tracking data both in a lab setting with stationary systems and in natural environments using wearable technology. This solution is compatible with the following Brain Products hardware systems:

• actiCHamp Plus

• BrainAmp

• LiveAmp

BrainVision Analyzer version 2 offers a complete set of advanced EEG analysis tools, and as of version 2.2.1, their improved import tool for external data (Add Channels transform) is compatible with PLOF export format 2.0. The new Add Channels include, among other features, the ability to import several datasets in one go, synchronization accuracy diagrams to evaluate the quality of the synchronization, and the option to choose what data to import among all eye tracking data streams and gaze, stimulus, and behavioral events generated in Tobii Pro Lab.

Bitbrain provides real-world research solutions for neuroscience, psychology, BCI, and consumer research. All Bitbrain systems are developed to facilitate natural user behavior and quick and clean setup while ensuring robust signal quality.

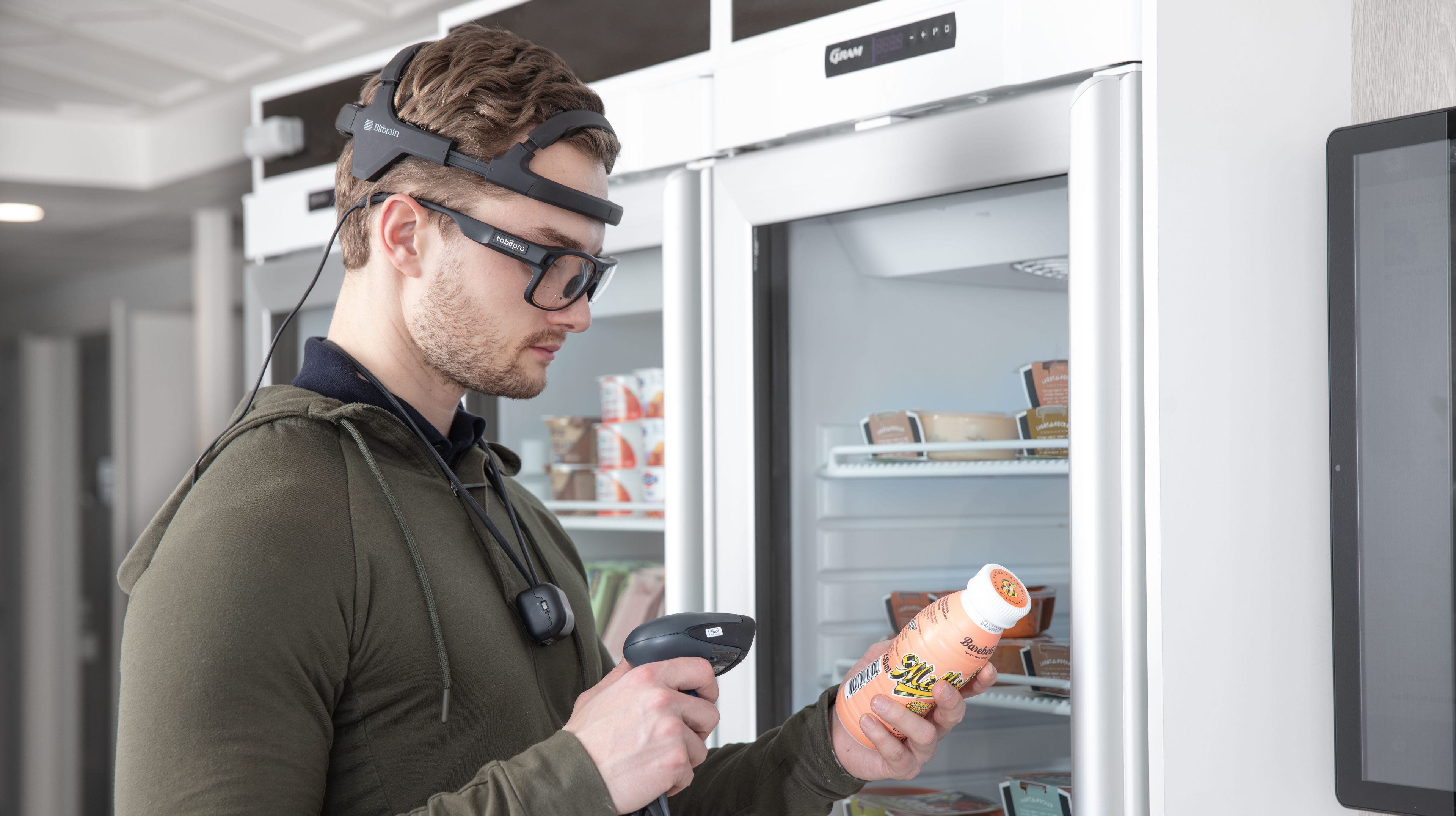

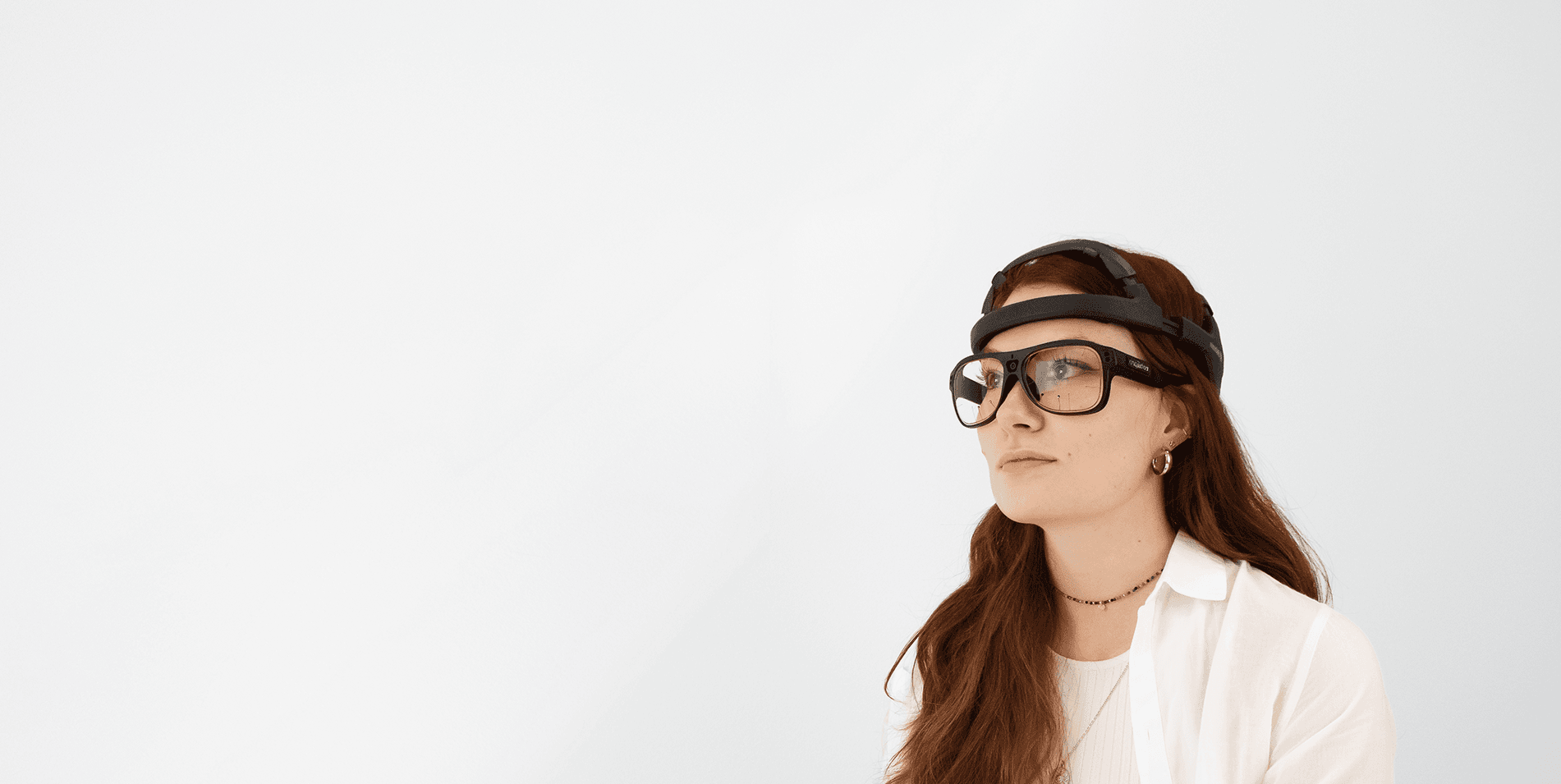

The combined solution between Tobii Pro Lab and Bitbrain allows the user to co-register EEG and up to 35 channels of physiological signals (GSR, ECG, EMG, Temp, Resp, etc.), as well as people indoor positioning (IPS), with data from eye tracking. Bitbrain’s wireless solutions can be combined with screen-based and wearable Tobii Pro systems. This solution is compatible with the following Bitbrain hardware systems:

• Versatile and Minimal EEG and biosensors families

• Intrack (IPS)

Bitbrain has developed SennsMetrics, a flexible and intuitive data analysis tool. SennsMetrics is compatible with PLOF export format 2.0 and can import gaze and event data from Tobi Pro Lab. Eye tracking data can be visualized together with cognitive, emotional, and behavioral metrics calculated automatically using Bitbrain cloud analysis.

ANT Neuro provides complete solutions for clinical neurodiagnosis and neuroscience research.

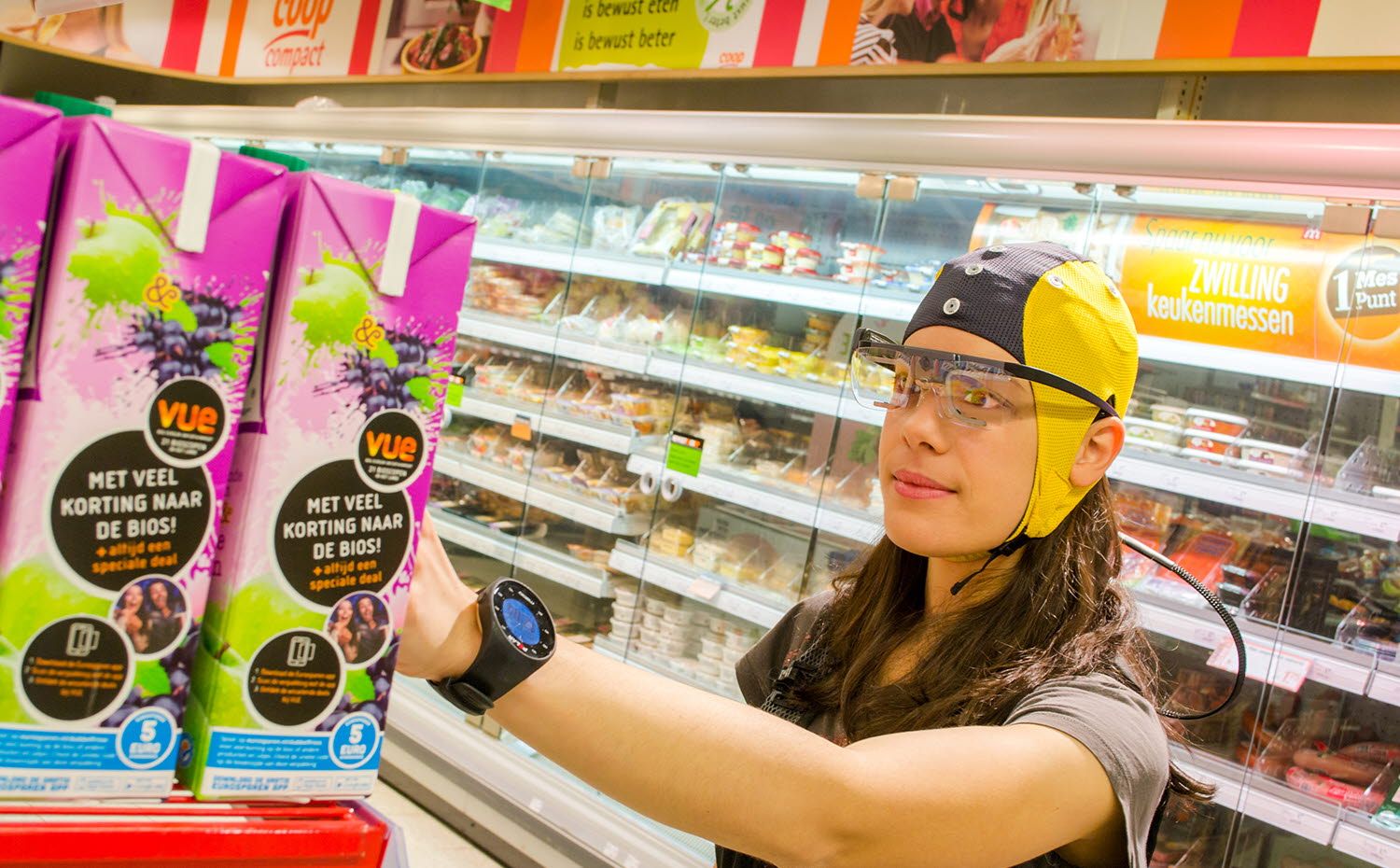

The combined solution between Tobii Pro Lab and ANT Neuro allows users to co-register EEG datasets with eye tracking data, both in a lab setting with stationary systems and in natural environments using wearable technology. This solution is compatible with the following ANT neuro hardware systems:

• eego EEG amplifier family

ASATM analysis software offers advanced EEG analysis tools and is compatible with PLOF export format 2.0. The analysis software can import eye tracking events from Tobii Pro Lab to segment and analyze EEG data according to stimulus onsets, fixation onsets, AOI visits, or behavioral events.

MindWare Technologies is a company that provides psychophysiology solutions for research, such as GSR, EKG, EMG, Cardiac Impedance (ICG) and respiration.

Tobii Pro Lab and MindWare’s combined solution allows the user to co-register biometrics with eye tracking data both in a lab setting with stationary systems, and in natural environments using wearable technology. This solution is compatible with the following MindWare hardware systems:

• BioNex desktop data acquisition platform

• MindWare mobile Impedance Cardiograph

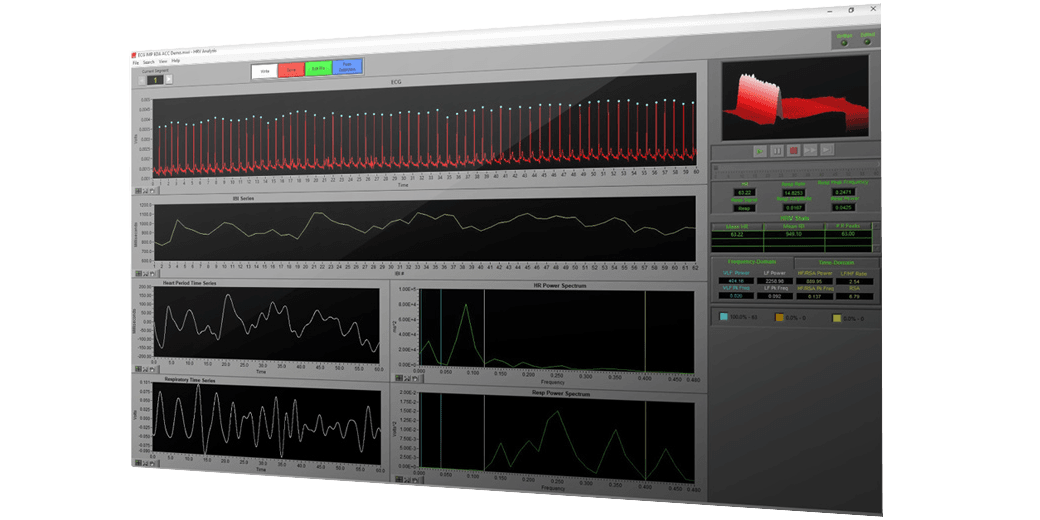

MindWare Analysis software suite is compatible with PLOF export format 2.0. The analysis software can import eye tracking events from Pro Lab to segment and analyze biometric data according to stimulus onsets, fixation onsets, AOI visits, or behavioral events.
