Tobii Pro Glasses 3 - wearable eye trackers
Tobii Pro Glasses 3

Real world. Real behavior. Real insight.

Designed for the real world, our third-generation wearable eye tracker allows you to conduct behavioral research in a wide range of settings.

Overview

Created for the real world

Tobii Pro Glasses 3 gives you the freedom to take your research further. The scene camera offers a wide field of view, while eye tracking technology integrated into the lenses creates an unobstructed view for the wearer.

Designed for real situations

Tinted IR blocking Protective Lenses deliver the durability needed to run studies outside or in more formidable real-world settings. Tobii Pro Glasses 3 are robust and compact enough to be worn under helmets and other protective gear.

Made for real behavior

Built to be unobtrusive to the wearer's field of view, Tobii Pro Glasses 3 handles natural head and body movement without sacrificing data quality. A discreet and lightweight design enhances the possibility for natural behavior.

Glasses 3 wearable eye tracker front view

Features

Product features

  • 16 illuminators and 4 eye cameras integrated into scratch-resistant lenses, allowing for optimal positioning and providing an unobstructed view for the wearer

  • Scene camera with a wider field of view (106° H: 95°, V: 63°)

  • Additional protective lenses, both clear and tinted

  • Technology integrated into frames for a robust design and the ability to fit under headwear

  • Controller app capable of running on Android, Windows, and macOS. Available in English, Chinese, and Japanese.

Tobii Pro Glasses 3 component parts

What our wearable eye trackers deliver

  • Tracking of wider gaze angles for more comprehensive data on visual attention

  • Wide-angle scene camera allows recording gaze data over a large field of view

  • Patented 3D eye model combined with two cameras per eye guarantees very accurate gaze data

  • Slippage compensation technology and persistent calibration for consistent data throughout recordings

  • Accelerometer, gyroscope, and magnetometer sensors differentiate head and eye movements

  • Successful tracking of a large percentage of the population regardless of eye color or shape

  • Withstands the elements and bright light thanks to protective lenses

  • Lightweight and robust designs ensure compatibility with protective headgear

  • The scene camera's increased field of view in Tobii Pro Glasses 3 makes a major difference when conducting wayfinding research, especially in an outdoor environment where, with a narrower field of view, we would lose track of the gaze data. The design of Pro Glasses 3 is very comfortable, making them unobtrusive to wear which is an important factor to collect unbiased insights.

    Professor Barbara Chaparro

    Embry-Riddle Aeronautical University, User Experience Lab

Specifications

Technical specifications

Eye tracking technique Corneal reflection, dark pupil, stereo geometry
Sampling rate50 Hz or 100 Hz
Parallax compensation toolAutomatic
Pupil measurement Yes, absolute measure
Binocular eye trackingYes
Calibration procedure One point
Slippage compensationYes, 3D eye tracking mode
Accuracy 0.6°
Material  Grilamid plastic, stainless steel, optical-grade plastic lenses
Scene camera format and resolution 1920 x 1080 @25 fps
Scene camera, field of view (diagonal) 106 deg. 16:9 format
Weight76\.5 grams (including cable)
Frame dimensions153 ×168 ×51 mm
Audio16-bit mono, integrated microphone
Number of eye tracking sensors4 sensors (2 per eye)
SensorsST™ LSM9DS1 sensors: Gyroscope and Accelerometer (sampled at 100 Hz); Magnetometer: (sampled at 10 Hz)
Nose pads Grilamid plastic, with clip-on attachments
Scene camera, video format  H.264
Scene camera, field of view (horizontal and vertical) 95 deg. horizontal / 63 deg. vertical
Cable length1200 mm
Design characteristics Lightweight and discreet
Fixed geometry Yes
Input voltage and current rating 5\.5Vdc max, 0.5A
Battery recording time105 min
Storage media SD (SDXC, SDHC) card
Dimensions (height x width x depth) 130 x 85 x 27 mm
Sync Port  3\.5 mm jack (TTL signal)
Battery typeRechargeable 18650 Li-ion, Capacity: 3400 mAh
Connectors Micro USB, RJ45 (Ethernet), 3.5 mm jack (sync port), head unit connector
Weight312 grams
Tobii Pro Lab (v.1.145)
Tobii Pro Glasses 3 API
Any application built on Pro Glasses 3 API
  1. Purchased separately.
    © 2022 Tobii. Technical specifications are subject to change without prior notice.
Operating System Windows 10 or 11 Android OS 11 or 12 MacOS 11 (Big Sur)
CPU 6th Generation Intel Core i5 (Dual core) or equivalent Snapdragon 835 or equivalent 6th Generation Intel Core i5 (Dual core) or equivalent
RAM8 GB4 GB8 GB
Tobii Pro software requires full administrator rights and does not support roaming profiles.
Installing/running Tobii Pro software in virtual machines (locally or on a server) is not supported. Running projects over network drives or cloud storage is also not supported .
If you have a multiple-screen setup, always use "extend screen", never "duplicate screen".

Software for data collection and analysis

Control studies and watch gaze data in real-time for instant insights with the Tobii Pro Glasses 3 controller app. For analysis, you export the data into Tobii Pro Lab. The assisted mapping tool aggregates data from eye tracking videos to snapshots, so you can visualize the data or extract statistics faster. The software is tailored to satisfy the needs of wearable eye tracking research, including the aggregation, interpretation, and visualization of data.

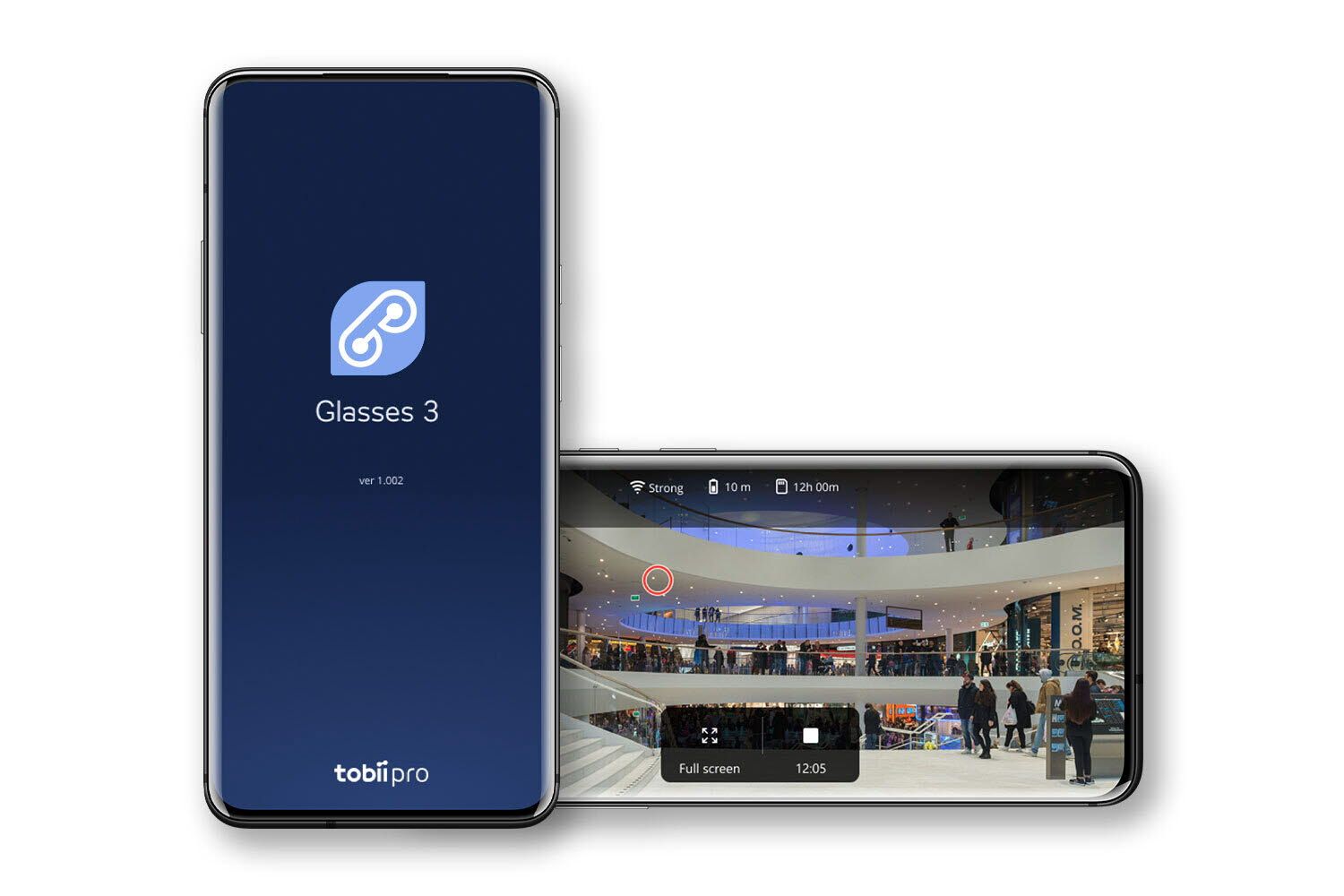

Tobii Pro Glasses 3 controller software analysis

Flexibility through our API

Tobii Pro Glasses 3 API allows you to build custom solutions and integrations. All data is accessible live through the API which uses standard protocols to make it easy to consume, for example, with video stream available over WebRTC and RTSP.

Synchronization

Combine eye tracking data with other biometric measurements, including EEG, NIRS, GSR, motion capture systems, respiration rate, and heart rate monitors. Tobii Pro Glasses 3 supports a range of synchronization methods, like TTL, TCP/IP, and NTP.

Data transparency and product testing

Tobii Pro Glasses 3 provides high-quality data, which we have verified through extensive testing, leveraging well-documented methods that mimic systematic variations of the environmental conditions.

To ensure that product-quality and user-safety requirements are met, we carry out multiple product tests and deliver our product-quality certifications.

Components

Components

Head unit

Wearable eye trackers capture what the wearer sees, their surroundings, and any ambient sound. The head unit is discreet and provides freedom of movement so the user can act naturally.

Recording unit

The recording unit collects eye tracking data and saves it to an SD card. This pocket-sized unit allows the test participant to move around freely.

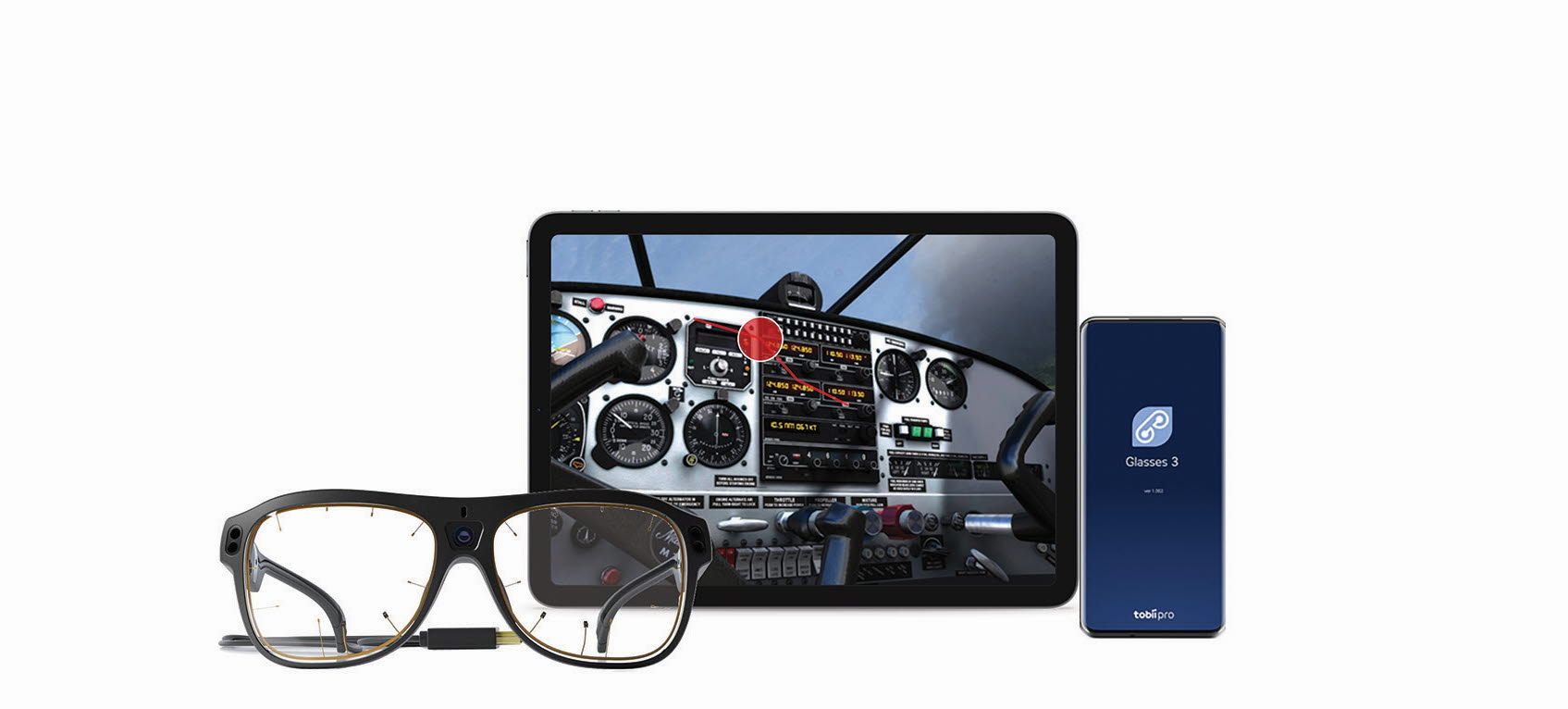

Tobii Pro Glasses 3 controller

Controller app

The Glasses 3 controller app enables:

  • Calibration
  • Start-stop recording
  • Participant management
  • Recording management
  • Live view
  • Replay
  • Video export
  • Network configuration and connections
